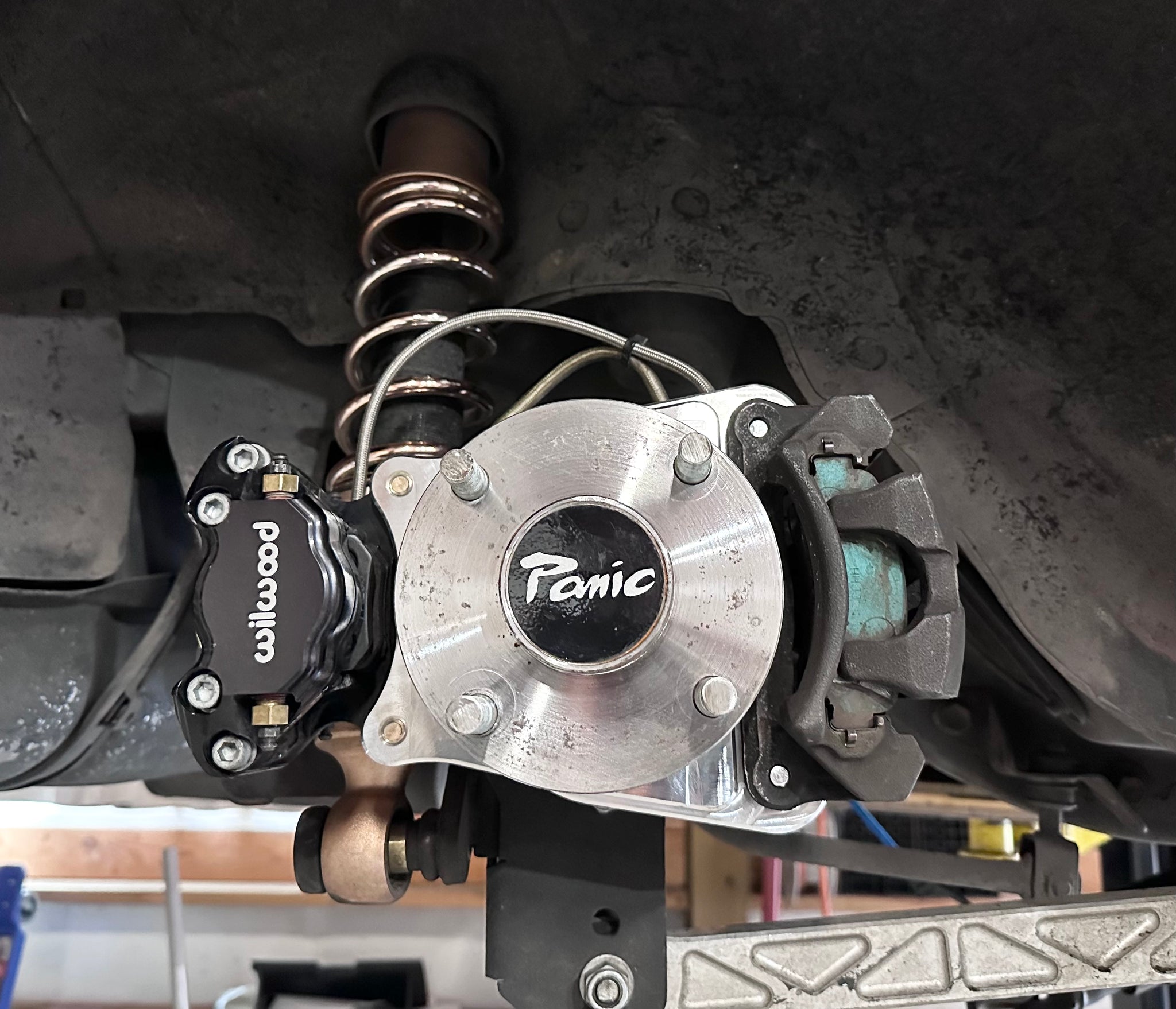

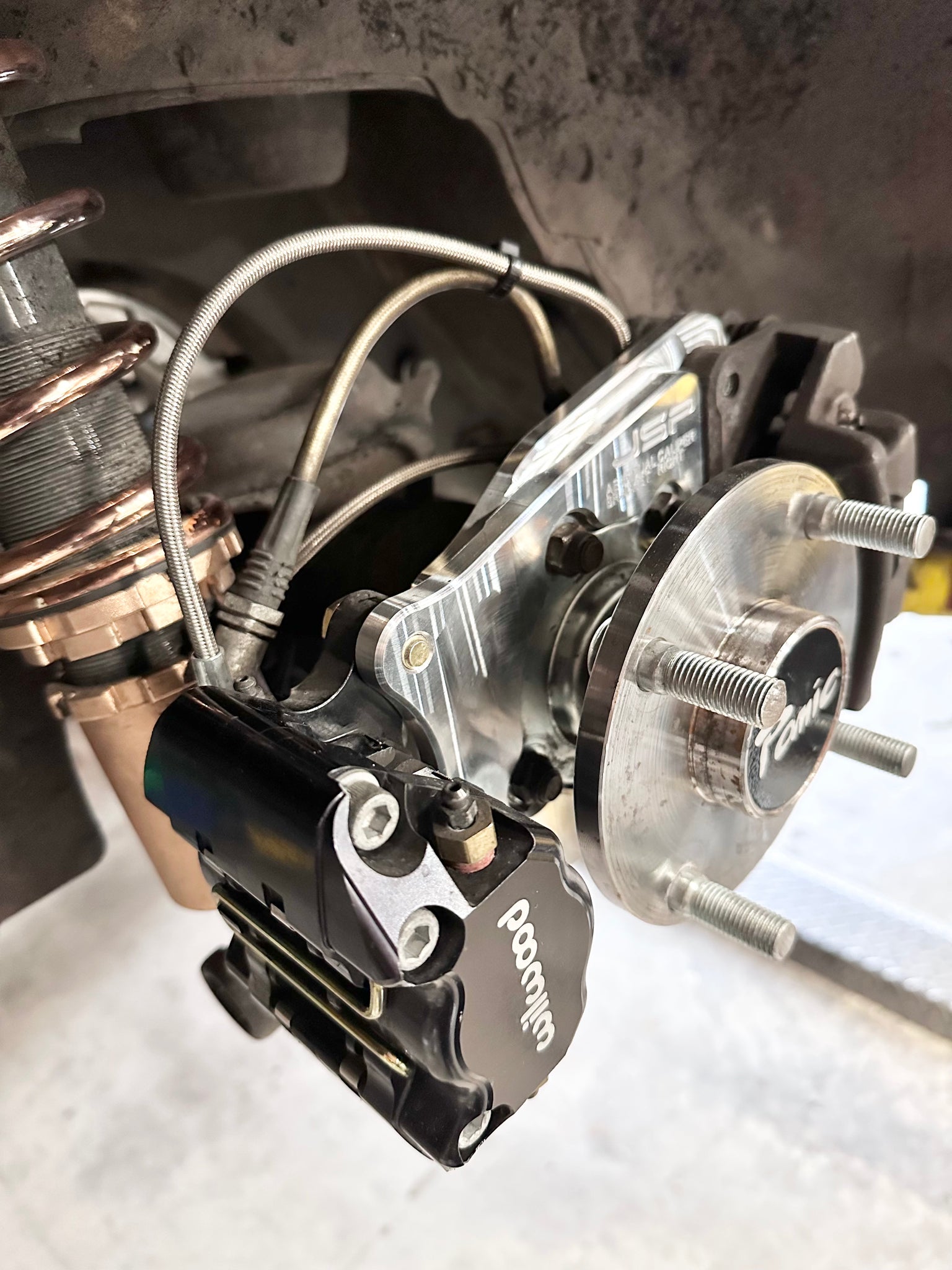

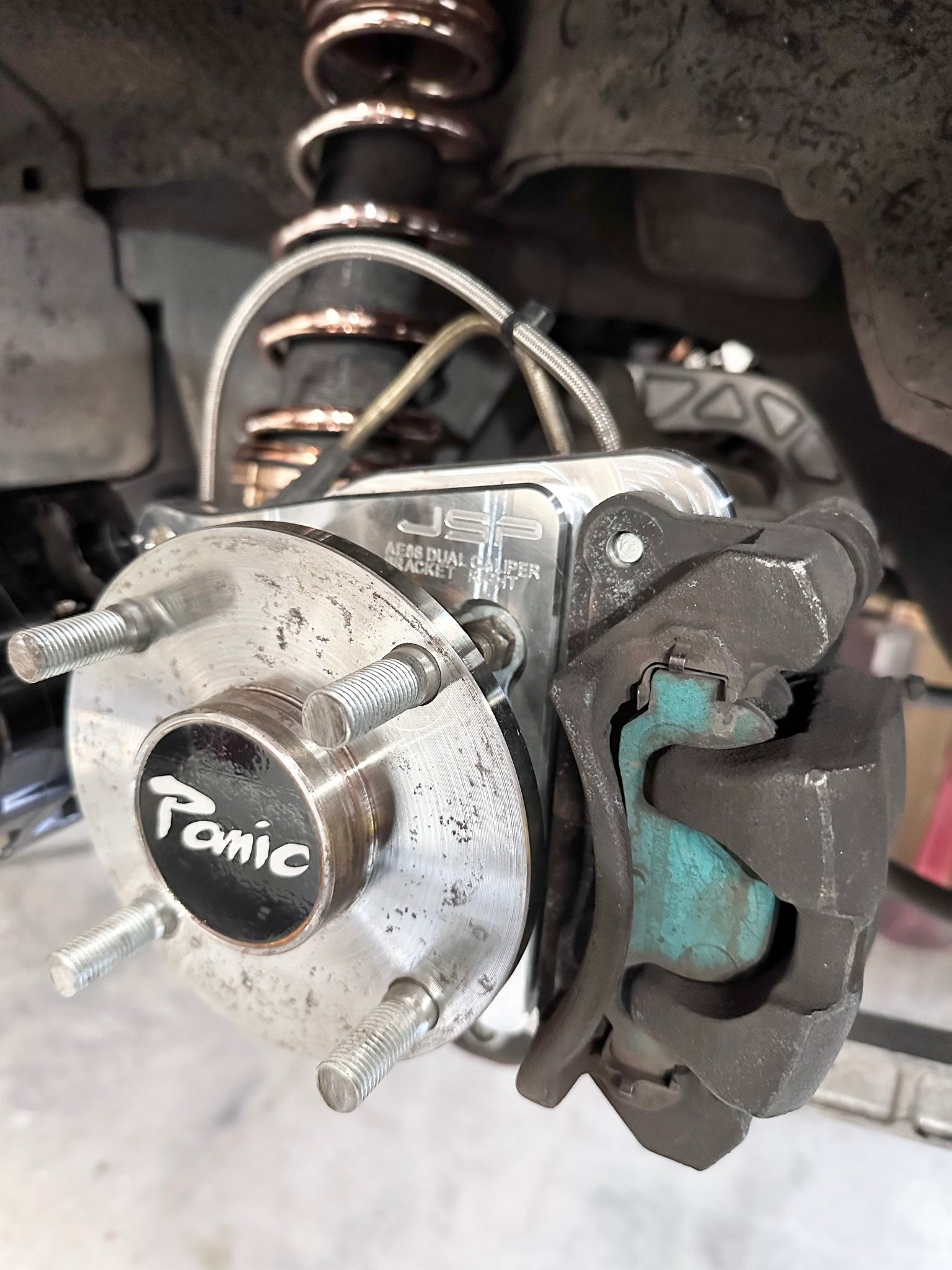

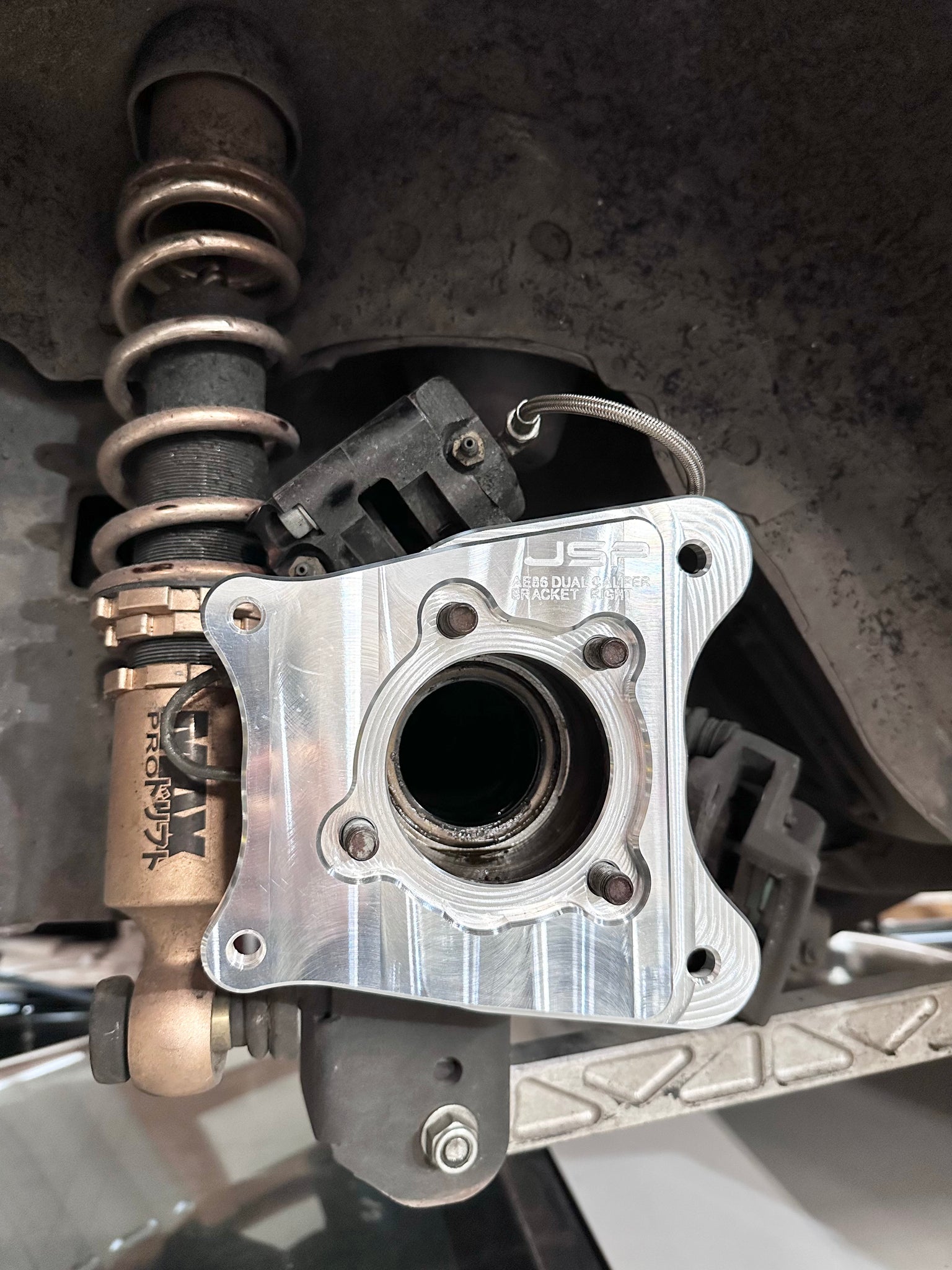

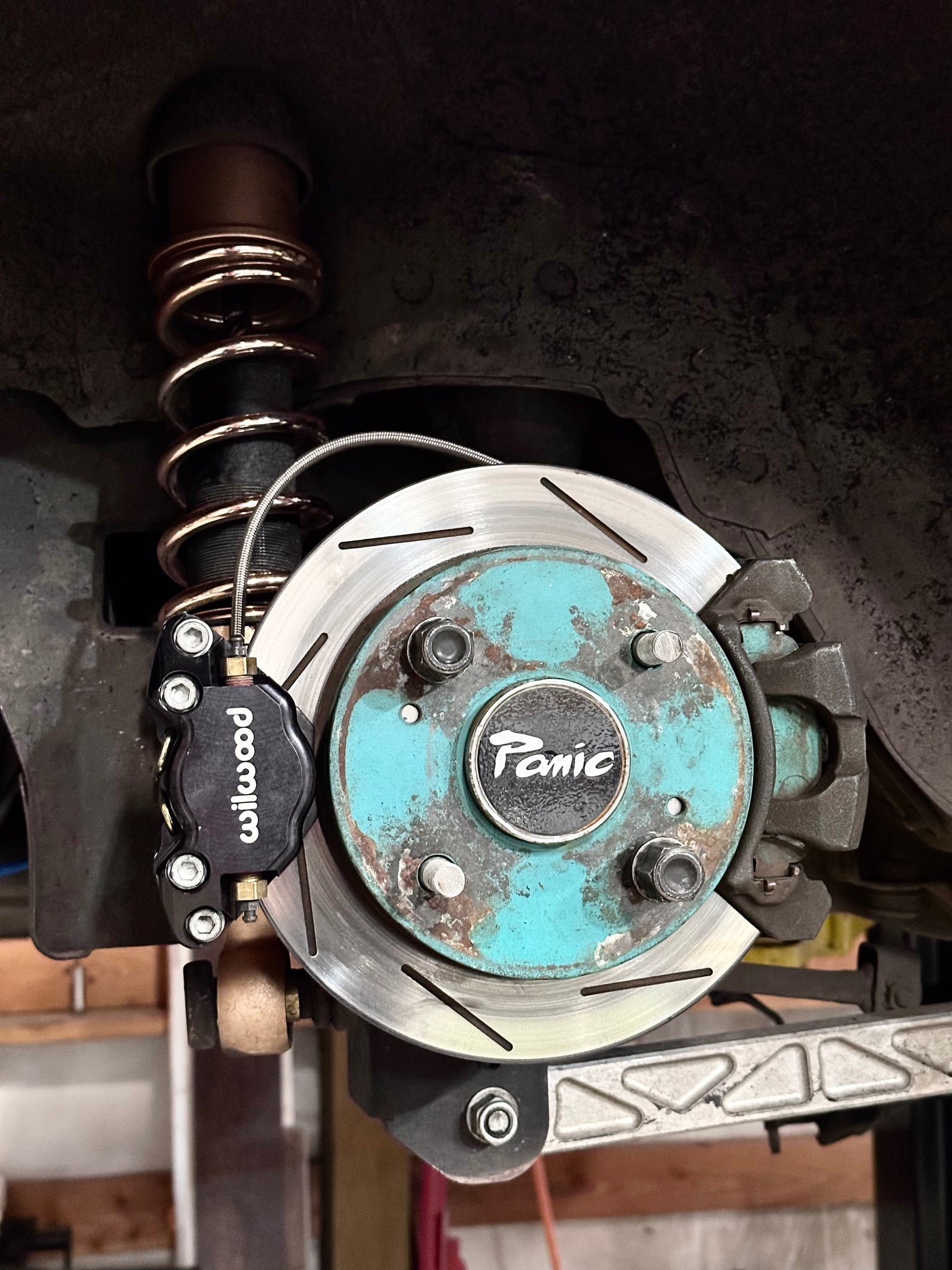

Our main goal with this bracket was to make installation as simple and cost effective as possible. This billet CNC machined bracket is a direct bolt on replacement for your OEM rear caliper bracket. But has an added provision to add a single Wilwood caliper as well for your hydraulic handbrake. This kit retains the factory brake rotor and factory AE86 caliper so there’s no need to change anything else. This also allows the kit to be used with 14” wheels.
This bracket has also been confirmed to fit on the first generation Supra 7.5” rear axle as long as you use AE86 calipers and rotors.

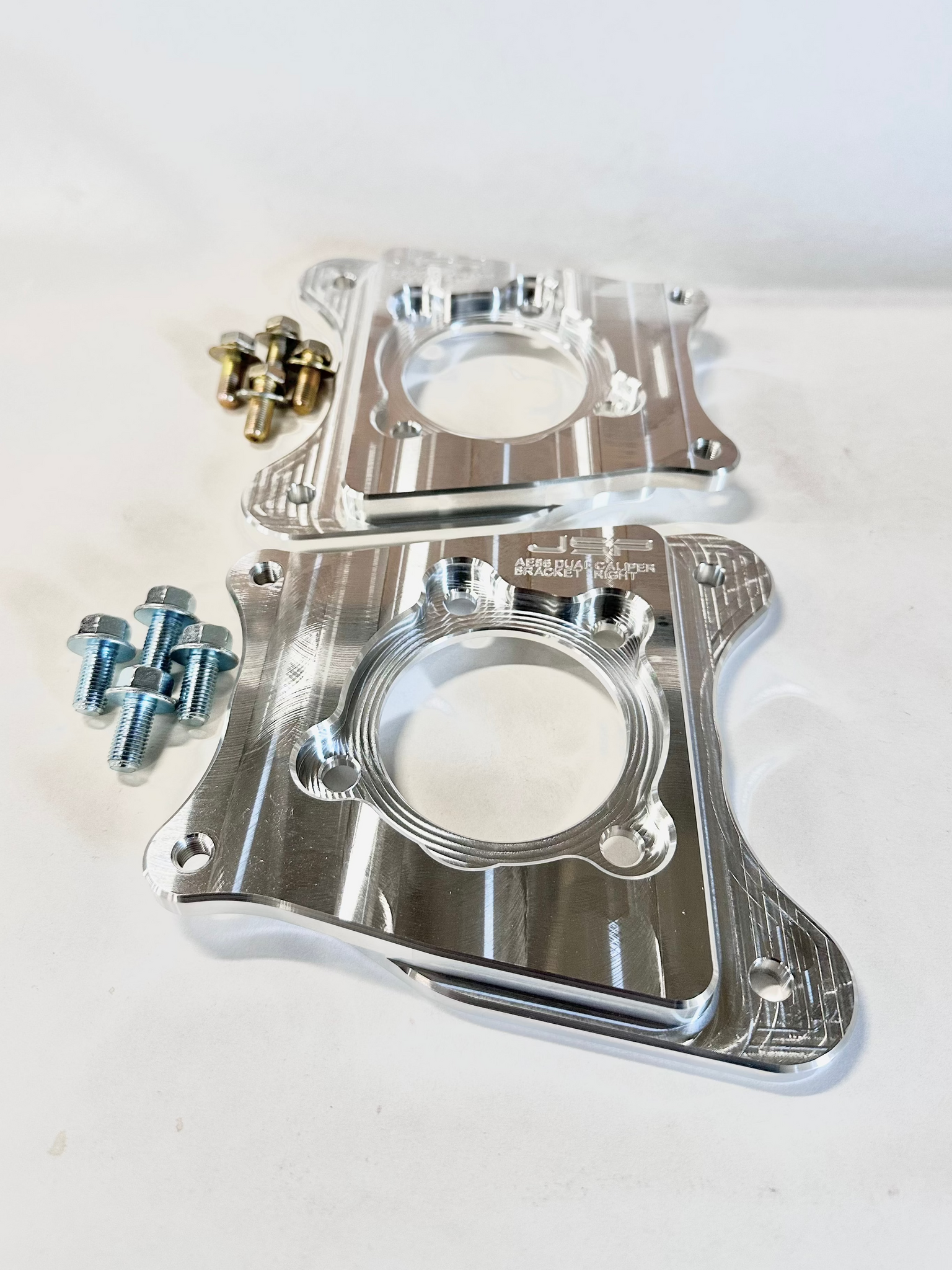

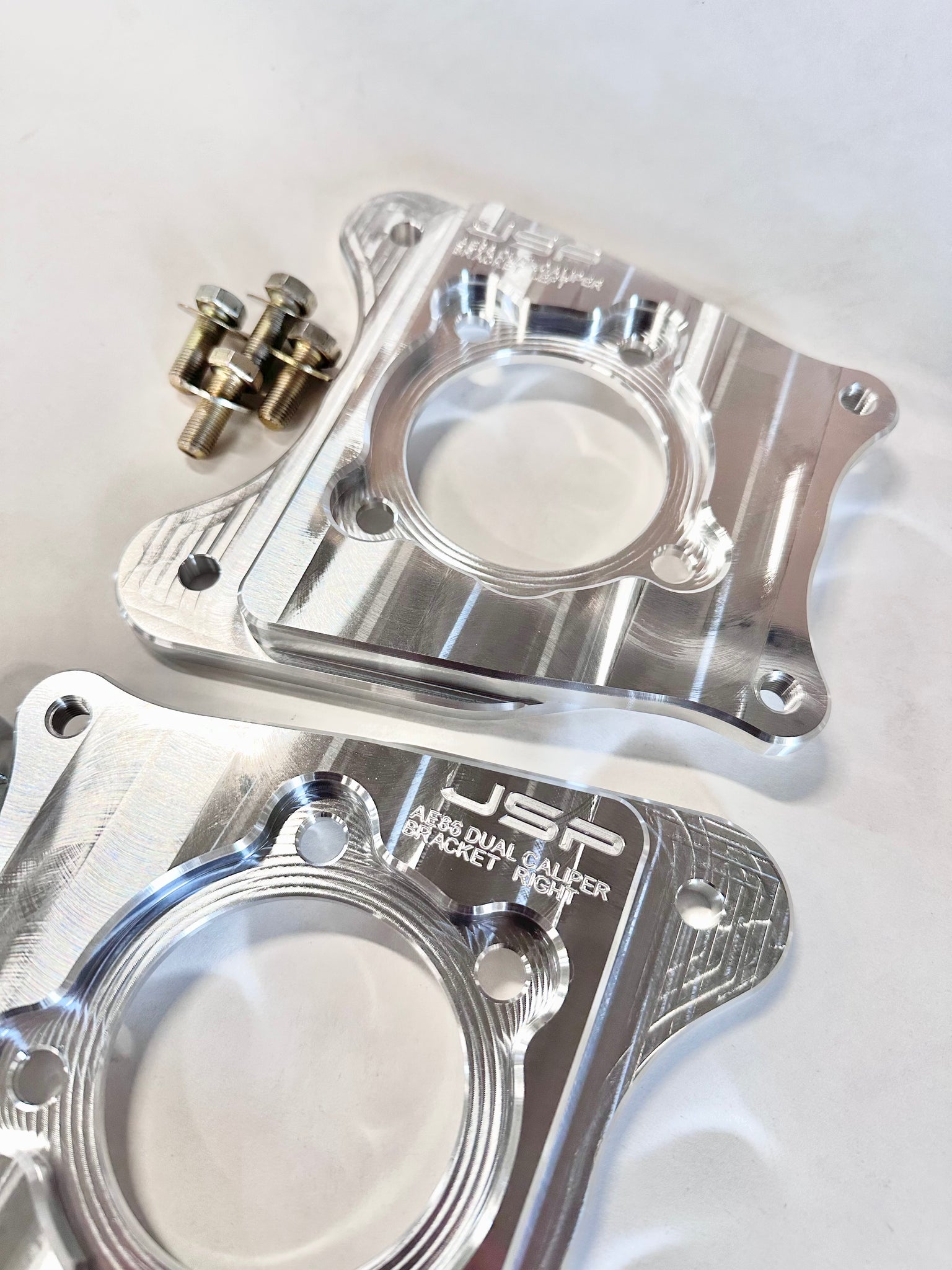

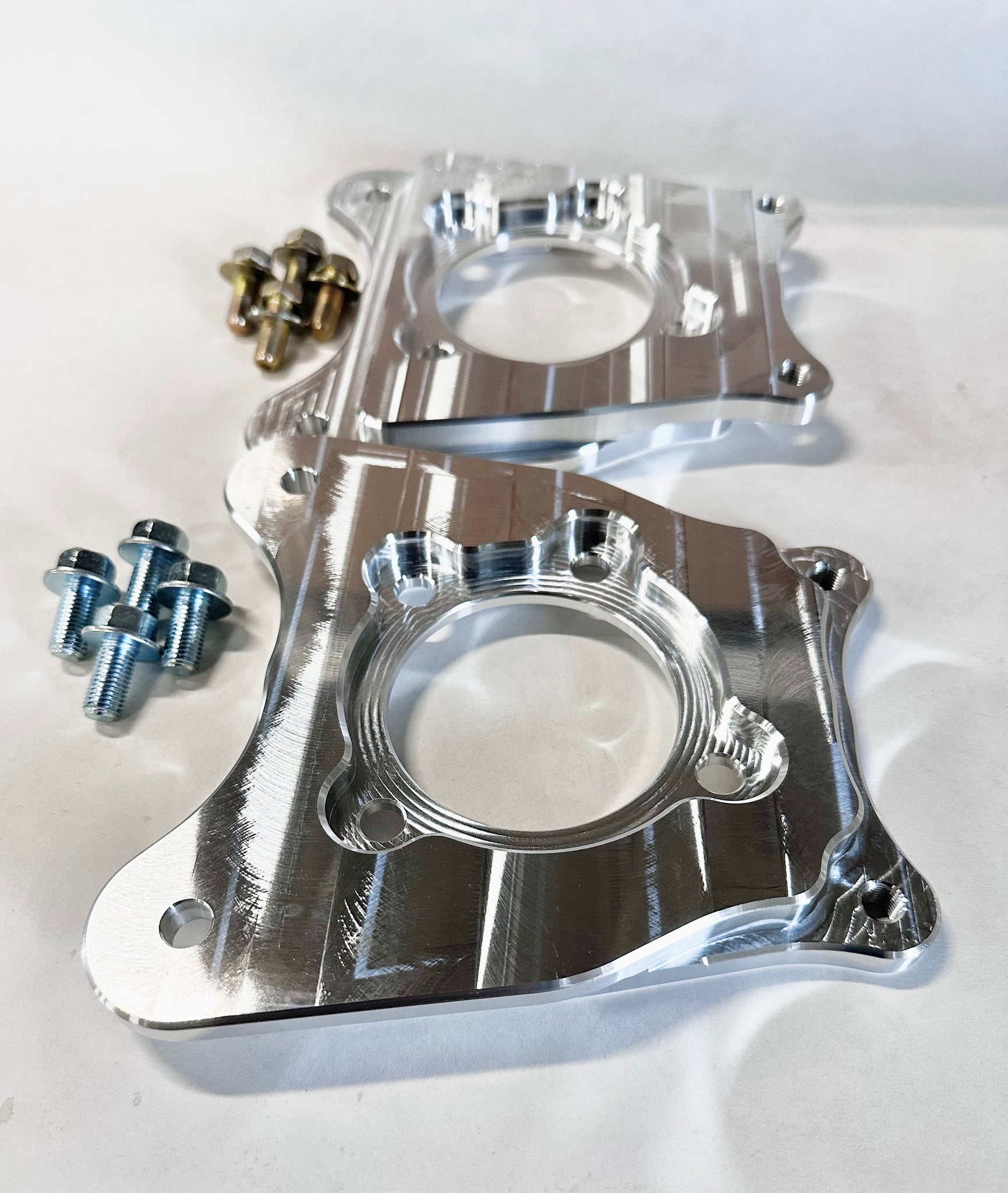

The Kit includes two caliper brackets (left and right) and all hardware needed to mount both calipers.
Uses Wilwood caliper part #: 120-9689

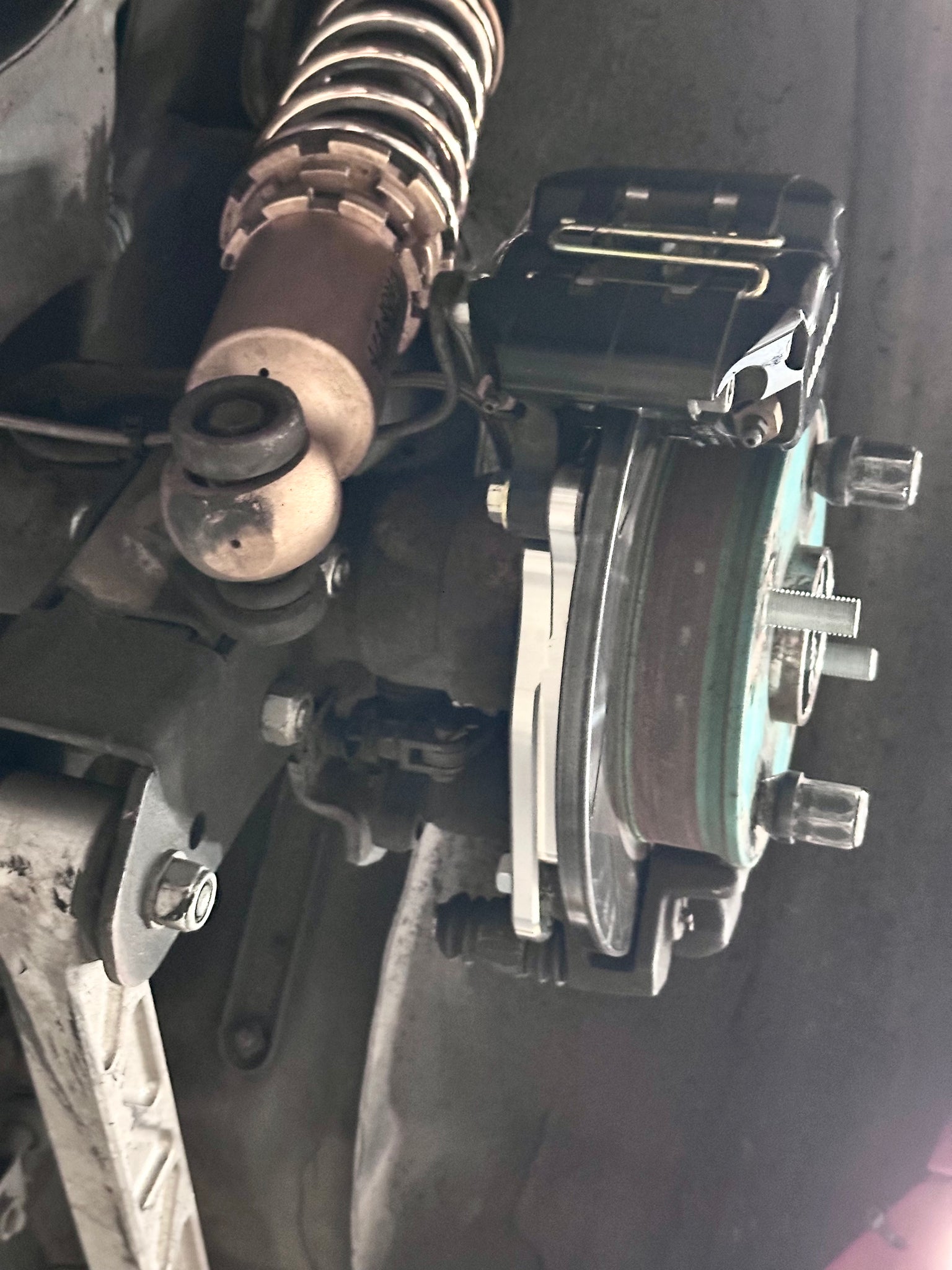

Note: The Wilwood caliper is designed for a slightly larger diameter rotor. This is why other kits require you to buy larger rotors. We wanted to keep the factory rotors to make things easier and simpler. So with this kit it will be normal to see uneven pad wear on the Wilwood caliper because part of the pad does not contact the rotor. After months of extensive testing we have found that there is no detriment to this besides the pads wearing unevenly.
