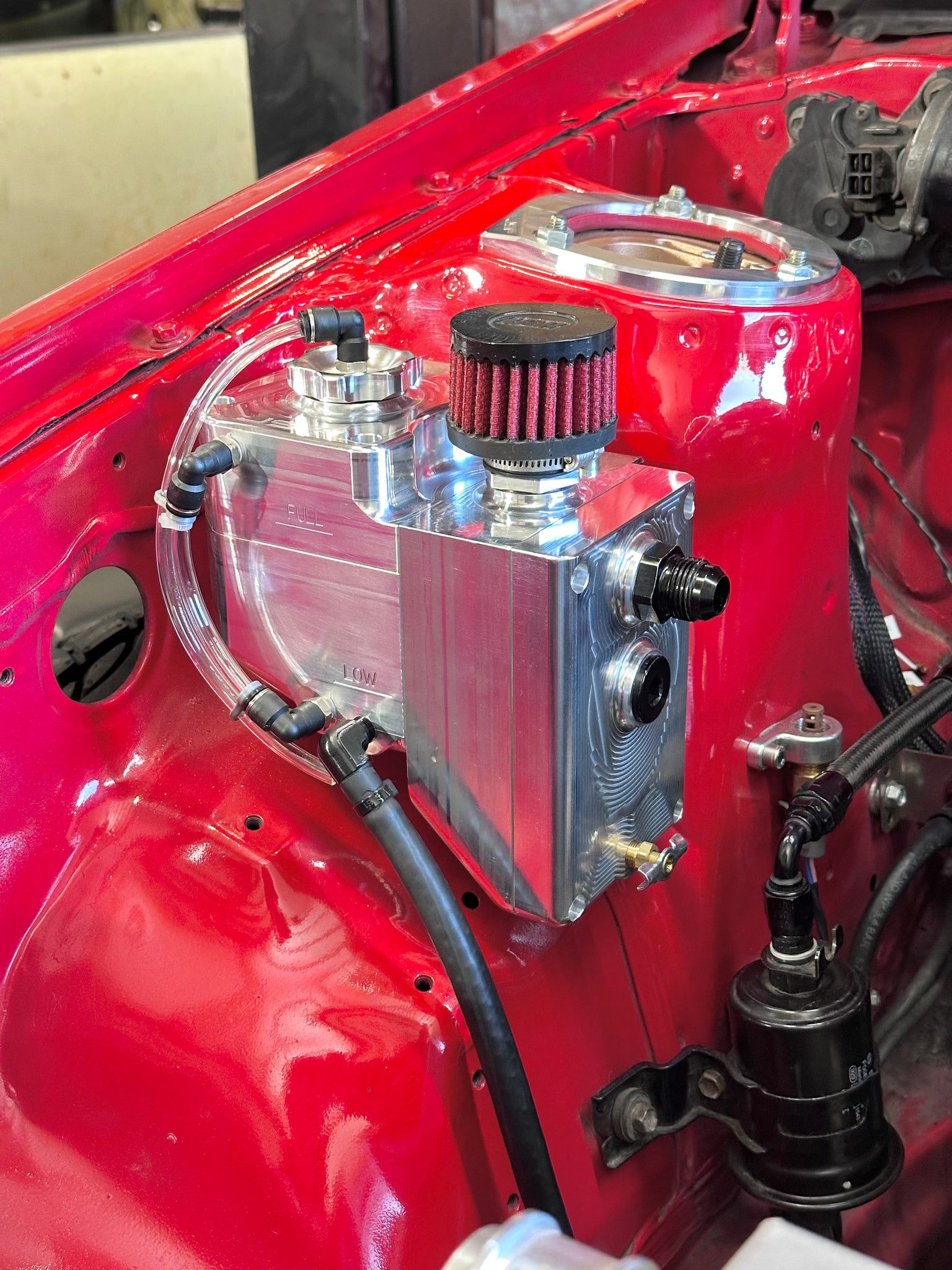

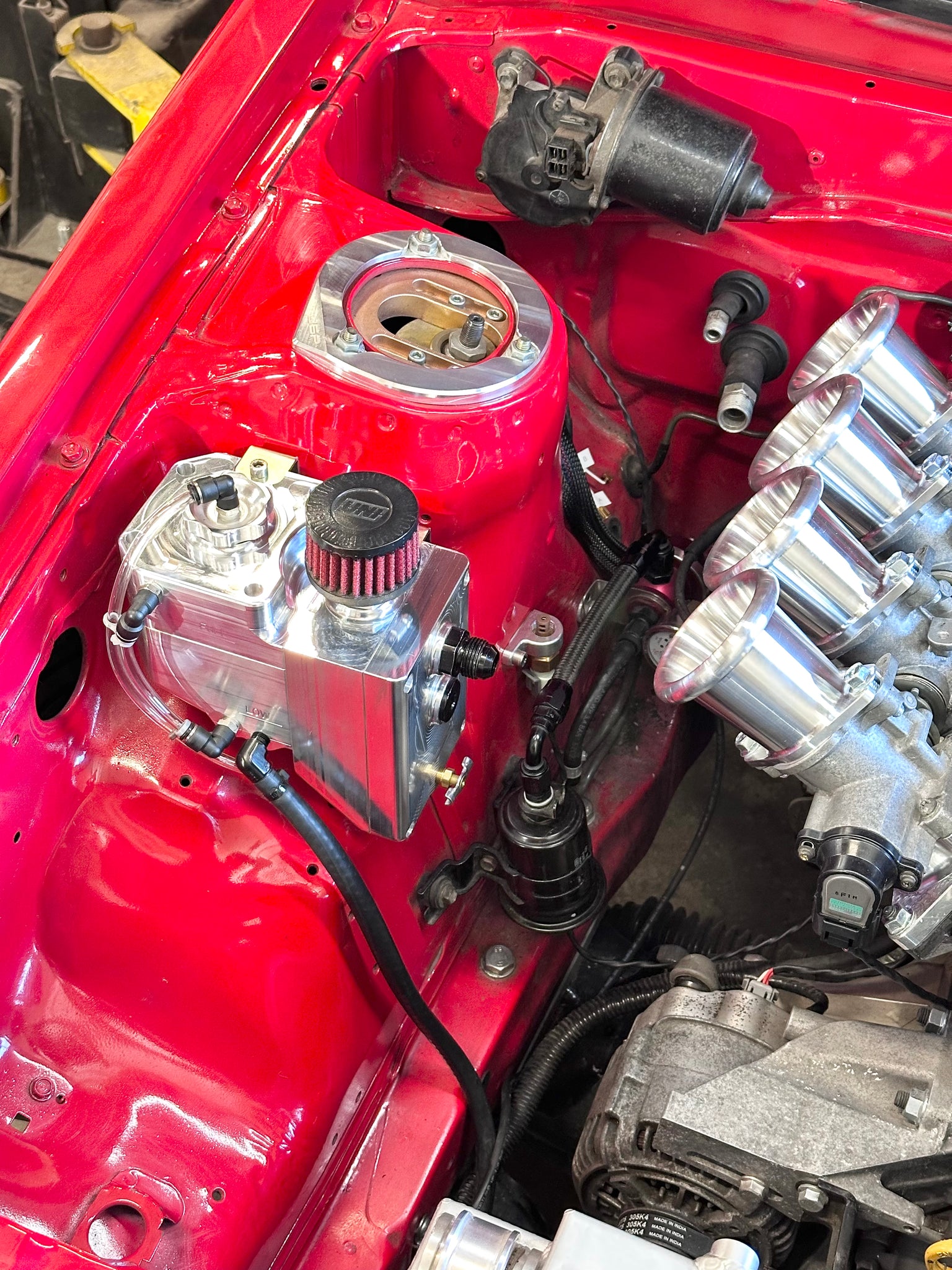

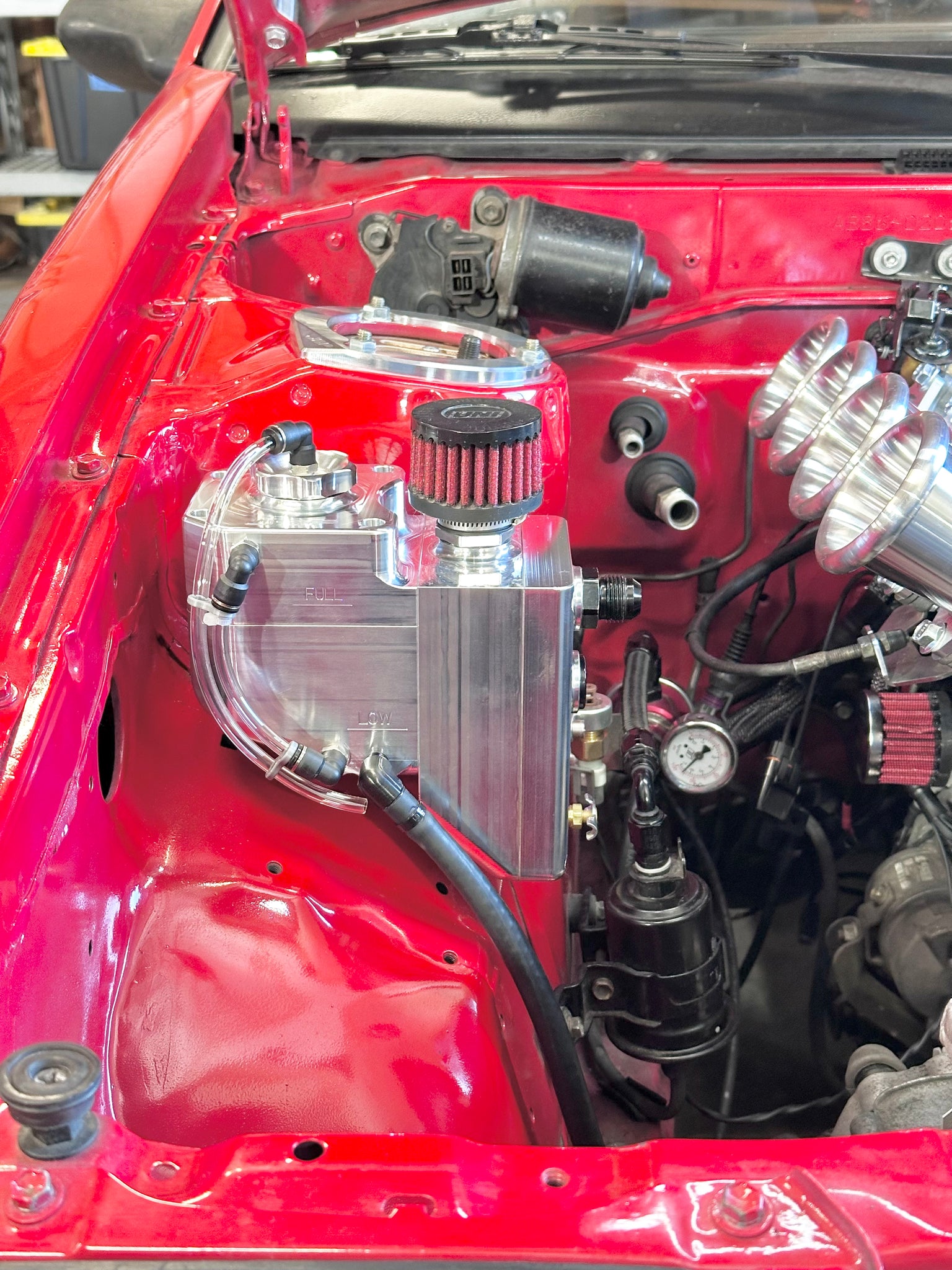

Our new Billet catch can combo for the AE86 is an exciting and unique product. It replaces the factory plastic overflow body with a cnc machined overflow bottle / oil catch can combination. This is great for those wanting to add a catch can without cluttering up the engine bay. This clean combo sits flush with the strut tower for easy hose routing on just about any engine combo.
The overflow bottle features a billet cap with o-ring for a snug seal. It also uses high quality push-to-connect fittings to create a sight glass for monitoring the bottles level, as well as safely routing the overflow tube in case of extreme overheating.
The oil catch can features two -10 orb ports on the side, one -12 orb port on top, and a 1/8npt port on the bottom for draining. The brass petcock drain fitting is included. On top, you can choose to plug the -12 for a sealed can, or use the included 1” bore breather filter for a vented setup. Inside the can includes a laser cut baffle as well as stainless steel mesh to ensure oil is properly separated from the oil/air mist and no oil escapes out the breather. Here’s a list of features:
1) All CNC machined billet parts, no worries about weld failures or thin sheet metal bulging/warping under pressure and heat
2) Integrated sight glass and overflow tube on the reservoir
3) Oil catch can features two -10 orb ports on the side. Plus one -12 orb on the top for a hose or the included 1” breather filter
4) Catch can will be internally baffled and filled with stainless steel mesh for excellent oil separation.
5) Included bracket and hardware is a direct bolt on for AE86. BUT has slotted and added holes for somewhat universal mounting.
6) Included all stainless steel hardware for assembly.
7) Easy drain fitting on the bottom of the can that can also be plumbed as a return
What you will receive:
1x Assembled oil catch can combo
1x 1” breather filter with orb adapter
1x -10 orb port plug
1x mounting bracket with hardware
